XTRA GARD - FRLS has special flame retardant, low smoke emitting and toxic fumes suppressing properties, in addition to the properties required by IS-694:1990. 0.75 Sq mm to 95.0 Sq mm FR Multistrand Cables - House Gard - FR. In the case of fire, conventional PVC insulated wires give out thick black smoke and toxic fumes of hydrochloric acid gas. This impairs visibility and hampers rescue operation. Xtra Gard on the contrary, not only emits very little smoke and toxic gases, but also retards the spreading of fire. It is thus ideal of concealed and conduit wiring in multi-storied high rise buildings such as hotels, banks, hospitals, factories, commercial complexes and residential apartments etc. Range of FRLS Multistrand Cables - Xtra Gard 1.0 Sq mm to 6.0 Sq mm FRLS Multistrand Cables - Xtra Gard
These are recommended application only. Exact load of appliances / machinery should be checked for current requirement and appropriate wire size should be chosen accordingly.
FR-LSH PROPERTIES (Improved Fire performance, Category C2)
Sizes
Specified Values
Critical Oxygen Index
Oxygen Index minimum 29%
Temperature Index
Temperature Index min 21% at 250° C
Test for Halogen Acid Gas Evolution
Hydrochloric acid gas released 20% maximum by weight
Flame Retardant Low Smoke (FRLS) Single Core Unsheathed Flexible cables in Voltage grade upto 1100 Volts.
Nominal Cross sectional area of Conductor
Number/Nom. Of Wire
Nominal Thickness of Insulation
Overall Diameter (Approx)
Current Carrying capacity # 2 cables single phase
Curent Carrying Capacity
Sq. mm
mm
mm
mm
Amps
Amps
Amps
1.0
14/0.3*
0.7
3.2
12
13
18.10
1.5
22/0.3*
0.7
3.4
14
17
12.10
2.5
36/0.3*
0.8
4.2
19
24
7.41
4.0
56/0.3*
0.8
4.8
26
31
4.95
6.0
84/0.3**
0.8
5.6
34
40
3.30

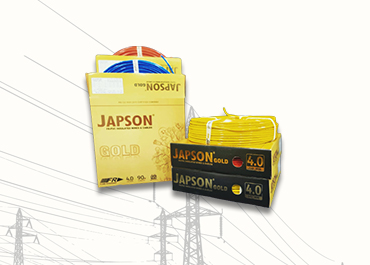

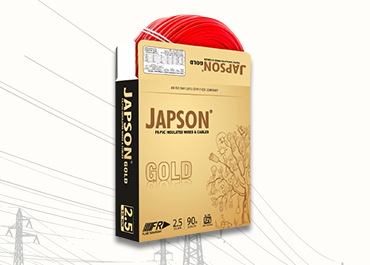

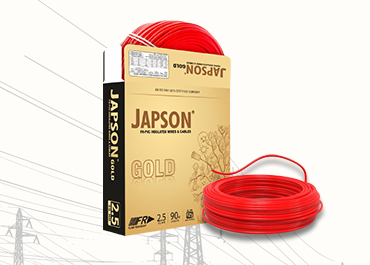

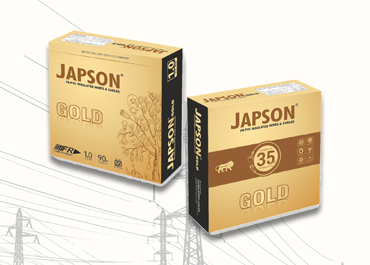

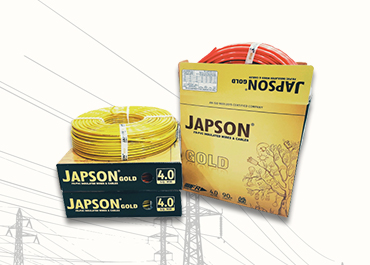

Standard packing - 90 meters in attractive cartons.
Colours available - Red, Yellow, Blue, Green (for earthing) & Black.
Confirm to IS-694-1990. ISI licence No. CM-L-3030832
